Writing Raphtory queries in GraphQL
Once you have started your GraphQL server, you will be able to find your GraphQL UI in the browser via the port that you set.

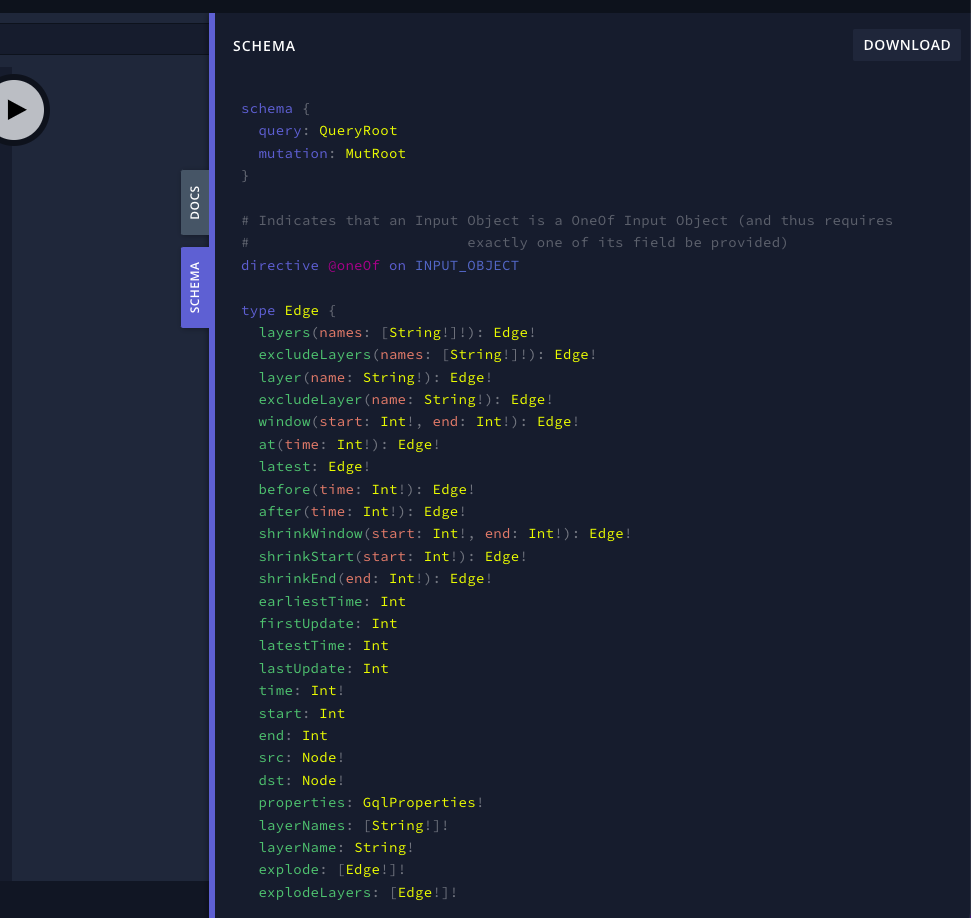

The schema for the queries can be found on the right hand side in a pull out toggle.
Example Queries in GraphQL
Here are some example queries to get you started:
Query to show list of all the nodes
query {
graph(path: "your_graph") {
nodes {
list {
name
}
}
}
}
Query to show list of all the edges, with node properties age.
query {
graph(path: "your_graph") {
edges {
list {
src {
name
properties {
get(key:"age") {
value
}
}
}
dst {
name
properties {
get(key:"age") {
value
}
}
}
}
}
}
}
This will return something like this:
{
"data": {
"graph": {
"edges": {
"list": [
{
"src": {
"name": "Ben",
"properties": {
"get": {
"value": 30
}
}
},
"dst": {
"name": "Hamza",
"properties": {
"get": {
"value": 30
}
}
}
},
]
}
}
}
}
All the queries that can be done in Python can also be done in GraphQL.
Here is an example:
g.node("Ben").properties.get("age")
query {
graph(path: "your_graph") {
node(name: "Ben") {
properties {
get(key: "age") {
value
}
}
}
}
}
Querying GraphQL in Python
It is possible to send GraphQL queries in Python without the in-browser IDE. This can be handy if you would like to update your Raphtory graph in Python. Here is some example code that shows you how to do this with the Raphtory client:
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
query = """{graph(path: "graph") { created lastOpened lastUpdated }}"""
result = client.query(query)
Simply pass your graph object string into the client.query() method to execute the GraphQL query and retrieve the result in a python dictionary object.
{'graph': {'created': 1729075008085, 'lastOpened': 1729075036222, 'lastUpdated': 1729075008085}}
Mutation Queries
In GraphQL, you can write two different types of queries - a query to search through your data or a query that mutates your data.
The examples in the previous section are all queries used to search through your data. However in our API, you are also able to mutate your graph. This can be done both in the GraphQL IDE and in Python.

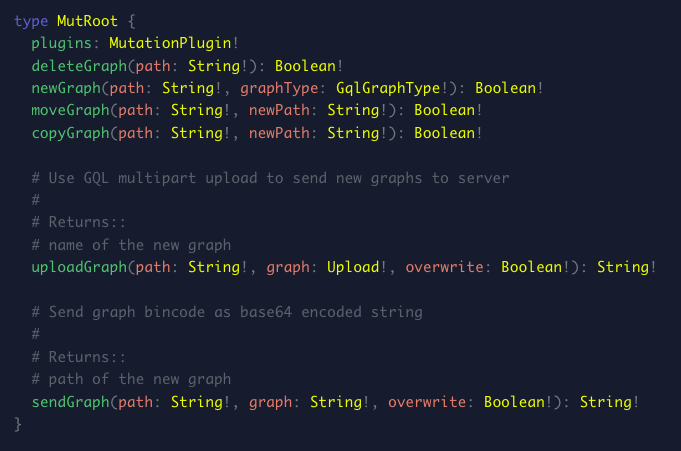

The schema in the GraphQL IDE shows how you can mutate the graph within the IDE:
There are additional methods to mutate the graph exclusively in Python such as sending, receiving and updating a graph, these will all be explained below.
Sending a graph
You can send a graph to the server and overwrite an existing graph if needed.
tmp_work_dir = tempfile.mkdtemp()
with GraphServer(tmp_work_dir).start():
client = RaphtoryClient("http://localhost:1736")
g = Graph()
g.add_edge(1, "bob", "emma")
g.add_edge(2, "sally", "tony")
client.send_graph(path="g", graph=g, overwrite=True)
To check your query:
query = """{graph(path: "g") {nodes {list {name}}}}"""
client.query(query)
This should return:
{
"graph": {
"nodes": {
"list": [
{"name": "bob"},
{"name": "emma"},
{"name": "sally"},
{"name": "tony"},
]
}
}
}
Receiving graphs
You can receive graphs from a "path" from the server. From this, you will get a Python Raphtory graph object back from the server.
g = client.receive_graph("path/to/graph")
g.edge("sally", "tony")
Creating a new graph
This is an example of how to create a new graph in the server.
The first parameter is the path of the graph to be created and the second parameter is the type of graph that should be created, this will either be EVENT or PERSISTENT. An explanation of the different types of graph can be found here
mutation {
newGraph(path: "new_graph", graphType: PERSISTENT)
}
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.new_graph("path/to/new_graph", "EVENT")
The returning result to confirm that a new graph has been created:
{
"data": {
"newGraph": true
}
}
Moving a graph
It is possible to move a graph to a new path on the server.
mutation {
moveGraph(path: "graph", newPath: "new_path")
}
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.move_graph("path/to/graph", "path/to/new_path)
The returning GraphQL result to confirm that the graph has been moved:
{
"data": {
"moveGraph": true
}
}
Copying a graph
It is possible to copy a graph to a new path on the server.
mutation {
copyGraph(path: "graph", newPath: "new_path")
}
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.copy_graph("path/to/graph", "path/to/new_path)
The returning GraphQL result to confirm that the graph has been copied:
{
"data": {
"copyGraph": true
}
}
Deleting a graph
It is possible to delete a graph on the server.
mutation {
deleteGraph(path: "graph")
}
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.delete_graph("graph")
The returning GraphQL result to confirm that the graph has been deleted:
{
"data": {
"deleteGraph": true
}
}
Updating the graph
It is possible to update the graph using the remote_graph() method.
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.new_graph("path/to/event_graph", "EVENT")
rg = client.remote_graph("path/to/event_graph")
rg.add_edge(1, "sally", "tony", layer="friendship")
Once you have updated the graph such as adding an edge, adding a node, removing an edge etc. You can receive a graph using receive_graph() and stating the path of the graph you would like to receive.
g = client.receive_graph("path/to/event_graph")
